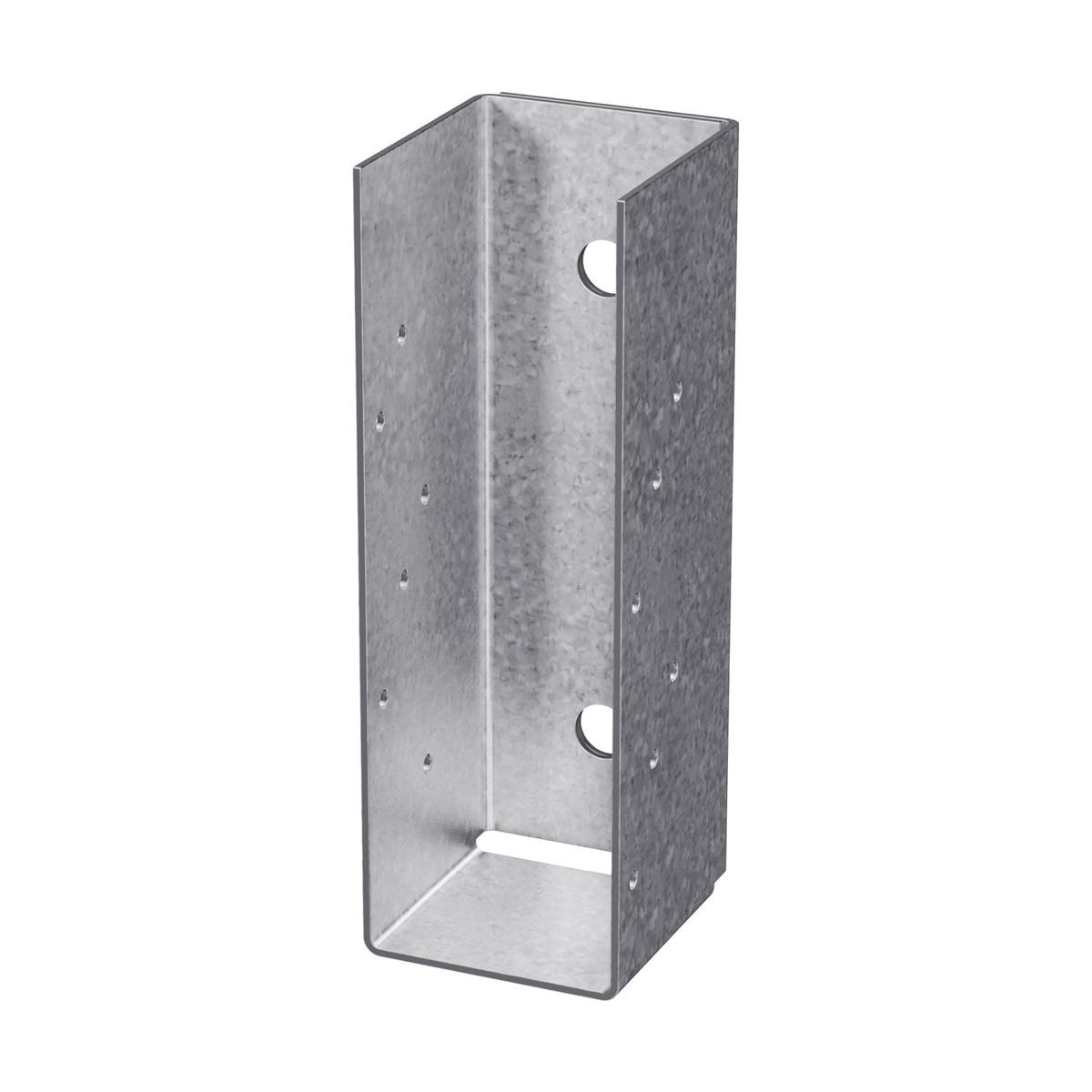

Simpson Strong-Tie 3-9/16-in. x 11-1/4-in. Galvanized Masonry Beam Hanger with Screws/Anchors (MBHU3.56/11.25KT)

Key Features

Built for Masonry This face-mount masonry beam hanger gives you a direct way to connect a wood beam to a masonry or concrete wall without a welded assembly. That matters when you need a clean, job-ready connection designed specifically for this application. Fasteners Included Each hanger includes the required Titen HD anchors and Strong-Drive SDS heavy-duty connector screws. You are not chasing down separate hardware or guessing what was specified. Heavy 10-Gauge Steel The 10-gauge steel body and G90 galvanized coating give this connector the strength and corrosion resistance expected for structural wood-to-masonry connections in protected applications.

Overview

The Simpson Strong-Tie MBHU3.56/11.25KT Masonry Beam Face-Mount Hanger is a face-mount masonry beam hanger for connecting a wood beam to a masonry or concrete wall. This is a masonry beam hanger designed for wood-to-masonry beam connections. Model Number: MBHU3.56/11.25KT. In this size, it fits a 3-9/16 inch wide by 11-1/4 inch high beam seat and gives you a purpose-built connector for solid sawn lumber, engineered wood beams, and trusses.

What separates this hanger from improvised field solutions is that it is made specifically for face-mounted beam attachment on masonry. The one-piece, non-welded design keeps the connector simple and consistent, which is what you want on a structural connection. Instead of piecing together hardware in the field, you get a formed steel hanger sized for the beam and intended to work with the specified anchor and screw combination.

The 10-gauge steel construction is the core of the product. On a connector like this, gauge is not just a number on a spec sheet. It tells you this hanger is built for structural duty, not light blocking or trim work. The G90 galvanized finish adds corrosion resistance for the connector body, which is important in masonry environments where moisture can be a factor. Simpson also notes that carbon-steel Titen HD anchors are not recommended for exposed exterior applications, so this is a product where installation environment matters.

A big practical advantage here is that the fasteners are included. Each MBHU3.56/11.25KT comes with two 3/4 inch x 5 inch Titen HD anchors and twelve 1/4 inch x 2-1/2 inch Strong-Drive SDS heavy-duty connector screws. That saves time during layout and install, and it helps keep the connection aligned with the published fastening requirement. On structural connectors, using the correct hardware in the correct holes is not optional if you expect the connection to perform as intended.

For installation, this hanger is designed to attach to concrete or grout-filled CMU walls using Titen HD anchors. Simpson calls out several details that matter in the field: drill holes with the same diameter as the specified Titen HD anchor, drill the hole 1/2 inch deeper than the anchor length, and avoid oversized holes because they reduce the thread interlock and lower anchor capacity. The company also calls for a moisture barrier between the beam and wall where required by code or jurisdiction.

In terms of fit, this specific model has a 3-9/16 inch seat width, an 11-1/4 inch height, and a 3-1/2 inch seat depth dimension. That makes it a match for the listed beam size in the MBHU series table. If you are working with solid sawn members, engineered wood, or trusses that fit this hanger size, the value is straightforward: you get a cleaner, more repeatable wood-to-masonry connection than trying to solve the problem with miscellaneous angles, bolts, or fabricated parts.

This hanger is best suited for builders, framers, remodelers, and masonry or concrete crews handling beam bearing connections into concrete or grout-filled CMU. It is also a good fit for engineers and contractors who want a recognized connector from a major structural hardware manufacturer rather than a field-built workaround. If your job calls for a face-mounted beam hanger for masonry, and your member size matches this 3-9/16 inch by 11-1/4 inch model, this is the right kind of connector to be looking at.

Made for Wood-to-Masonry Connections

This connector is built around the actual job: mounting a wood beam to masonry or concrete. The face-mount layout keeps the connection straightforward and gives you a cleaner starting point before the beam goes in.

• Designed for concrete or grout-filled CMU wall attachment using Titen HD anchors
• Non-welded, one-piece hanger body for a simple structural connector layout

Fast Installation with the Specified Hardware

Once the hanger is anchored, the beam install is direct and predictable. Having the required anchors and connector screws in the package helps avoid the usual jobsite slowdown of matching separate hardware to the connector schedule.

• Includes (2) 3/4 inch x 5 inch Titen HD anchors
• Includes (12) 1/4 inch x 2-1/2 inch Strong-Drive SDS heavy-duty connector screws

Size Matters on Structural Connectors

With structural hardware, the right fit is the whole game. This model is sized for a 3-9/16 inch width and 11-1/4 inch height, so you can match the hanger to the member instead of forcing a near-fit that creates problems later.

• Seat width: 3-9/16 inches
• Seat height: 11-1/4 inches with 3-1/2 inch seat depth dimension

What’s in the Box

• (1) MBHU3.56/11.25KT Masonry Beam Hanger
• (2) 3/4 inch x 5 inch Titen HD anchors
• (12) 1/4 inch x 2-1/2 inch Strong-Drive SDS Heavy-Duty Connector screws

Key Specifications

Built For

Construction General Contracting Carpentry Remodeling Masonry Wood Framing Beam-to-Wall Connections Engineered Wood Installation

Pro Tip

When you drill for the Titen HD anchors, match the bit diameter to the specified anchor and drill the hole 1/2 inch deeper than the anchor length. If the hole is oversized, you lose thread bite in the masonry and that cuts anchor performance fast.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie MBHU3.56/11.25KT Masonry Beam Face-Mount Hanger keeps a tricky connection simple

If you need to land a wood beam on a masonry wall, this is the kind of connector that saves time, keeps the install clean, and removes a lot of field guesswork.

• Who it’s for: Contractors, framers, remodelers, and builders making structural beam connections into concrete or grout-filled CMU.
• Why it stands out: It is a one-piece 10-gauge face-mount hanger that includes the specified anchors and connector screws, so the connection package is already thought through.
• Worth knowing: This galvanized model uses carbon-steel Titen HD anchors, and Simpson does not recommend those anchors for exposed exterior applications.

Common Questions

• What is this hanger designed to connect? It is designed to connect wood beams to masonry or concrete walls in a face-mounted configuration.
• What beam types can it be used with? Simpson lists it for solid sawn wood beams, engineered wood beams, and trusses.
• Can it be installed on CMU? Yes. Simpson specifies installation to concrete or grout-filled CMU walls using Titen HD anchors.
• Is this model exterior-rated as installed? The hanger has a G90 galvanized finish, but Simpson states that carbon-steel Titen HD anchors are not recommended for exposed exterior applications.
